Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules

Beijing Speedata Technology Co., Ltd

Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules

  • 1
  • 2

Brand Name : Speedata

Model Number : TT35

Certification : 3C /FCC /ROHS /IP65 /1.5M drop

Place of Origin : china

MOQ : 1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs

Packaging Details : conventional package

Item : long range rfid reader

Reading distance : 1.5m-2.5m

Interface : USB2.0, RS232

Camera : 5M AF

Memory Capacity : 512 MB

Battery : rechargeable Li-ion battery 4500mAh

OS : android4.0 or WM6.5

Contact Now

Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules

Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules

Specifications of TT43 Long Range RFID Reader:

  • 4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment
  • 500MP camera with high definition ,it's easy to collect all kinds of image information
  • Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
  • 3 compatible operating systems , not only to support the market's most fiery Android system, but also to meet with the Windows CE/Mobile systems, as well as secondary development. Customers can update the OS of the device to meet their needs and also can support compatibility function.
  • Special structure and external cushion protection design, solid and wearproof body shape
  • Matched with the machine seat charger, to ensure the charging interface durable,it's more quicker and easier
  • IP65 Industrial Class, 1.8M drop protection
  • Multiple Functions optional: card reader, printer, fingerprint, infrared reader, temperature, etc

Fundamental Parameters of Long Range RFID Reader:

Development Environment
Operating System Windows Mobile 6.1/6.5 (Optional 1)
Windows CE 6.0 (Optional 2)
Android 4.0.3
SDK Software Development Kit
Language C#, java
Tool Microsoft Visual Studio 2005
Fundamental Characteristics
CPU TI AM3715 A8 1Ghz
Memory 512MB DDR RAM + 512MB Frash ROM
Storage Micro SD/TF card max.32GB expansion
Display 4.5-inch IPS 854*480 (Without Transflective screen)
4-wire resistive touch screen
Communications
WWLAN Without modem (Optional 1)

Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE

UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2)

WiFi JORJIN WG7310 WiFi (802.11 b/g/n)
Bluetooth JORJIN WG7310 Bluetooth
GPS UBLOX 6010
Physical Characteristics
Dimensions 175*76*28mm
Weight more 400g with battery (according config)
Expansion Slots 2*PSAM(option), 1*SIM
Battery rechargeable li-ion battery 4500mAh 3.7V
Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
500-hours standby time, Up to 6-hours calling time, 4-hours charging time
Camera 5MP Camera
Video Support still image and video capture
Audio 3.5mm 4way plug
Keypad Front 17keys, Side 4keys
Interfaces 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host/RS232 interface (Customized)
User Environment
Operating Temp. -10 to 50℃
Humidity 10%RH - 90%RH (Non-condensing)
Protection class IP65
Drop resistance level 1.5M

Multiple modulars optional of TT43 android mobile barcode scanner:

Barcode scanners (optional )
1D scanner NewLand:EM1300 1D Infrared barcode scanner -- most Cost-effective (option 1)
HoneyWell:N4313 1D Laser barcode scanner (option 2)
Symbol:SE955 1D Laser barcode scanner (option 3)
1D/2D scanner NewLand:EM3095 2D Scanner (option 4)
Symbol:SE4500SR 2D Scanner (option 5)
RFID readers
LF RFID reader (134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1)
(125KHz) (Optional 2)
HF RFID reader (13.56MHz ISO 14443A/B ISO 15693)
NFC reader (include 13.56MHz ISO 14443A ISO 15693)
UHF RFID reader UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with R2000 shipset
Biometric fingerprint (optional )
Fingerprint UPEK TCS1 (meet the FBI’s FIPS-201)
Other Modules (optional )
PSAM ISO7816 (SIM card interfance)
MSR Compatible with one, two, three track. (without PCI, EMV security certification)
IC card reader ISO7816 ID-1
Printer Integrate 2 inch Direct thermal line printing
Far Infrared Meter Reading IEC62056-21 (IEC1107) communication protocol
433Mhz Require customers to provide 433Mhz wireless modules or specifications
Zigbee Require customers to provide 433Mhz wireless modules or specifications

Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules

Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules

Mobile Handheld UHF RFID Reader Scanner with Smart Long Range RFID Reader 900mhz Modules

Mobile Handheld UHF RFID Reader Scanner with Smart Long Range RFID Reader 900mhz Modules


Product Tags:

gprs rfid reader



uhf rfid handheld reader


China Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules wholesale

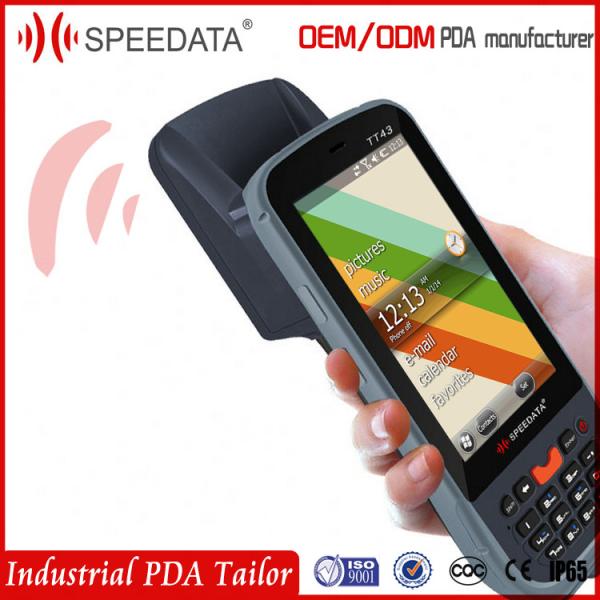

Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules Images
